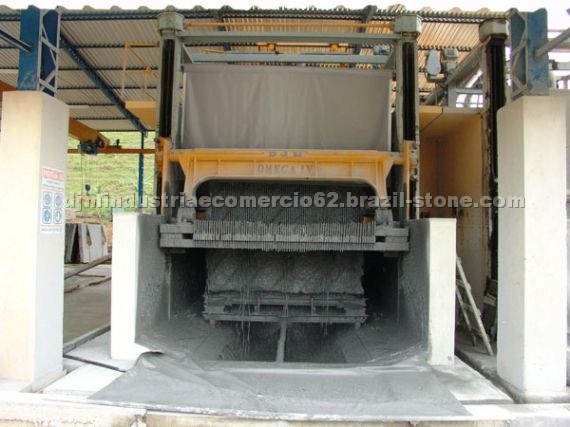

SAWING PRESS OMEGA IV

• Place of Origin:

   Brazil

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1461334

• Place of Origin:

  Brazil
• SEWING PRESS OMEGA IV
  Tecnicos Data
  Columns casting with guides you exchanged again of Steel SAE 1045
  Bipartite projection Ø2900
  Long arm without knuckle adjustment
  Inferior picture with chapão of 125mm x 600mm x 3225mm
  Tubular rectilinear shower
  Automatic Dosador of granalha
  Muzzle stops up to 80 plates
  Internal measure of the sewing press: 2,8 m largura x 3,95 m length
  Weight of 44t approached
  It harnesses total 76 cv
  Panel of digital command for all the sewing press
  Door track block
  Bomb 120 (With Pulley) Engine 20 cv
  New features (May 2006)
  Main battery special extreme Steel
  Excentrico special extreme Steel
  Knuckle special extreme Steel
  Wrist special extreme Steel

  Capacity of cut
  Block: width 2,53 m x length 3,05 m x heigth 2,10 m
  Plate 1,3cm = 109 you plate
  Plate 2 cm = 80 you plate
  Plate 3 cm = 60 you plate
  OPTIONAL
  Internal measure of the sewing press: 2,8 m largura x 4,15 m length
  Block: width 2,53 m x length 3,25 m x height 2,10 m
  Bomb 120 (Connected) Engine 20 cv
  Bomb 130 (Connected) Engine 30 cv
  Escada
  Thin whole number
